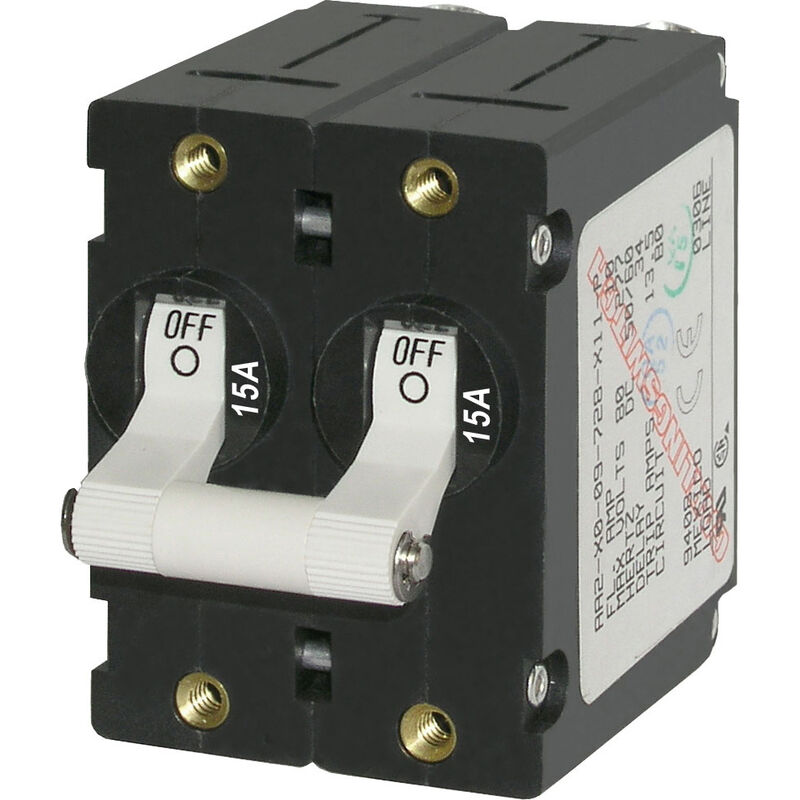

Blue Sea AC Circuit Breaker A-Series Toggle Switch, Double Pole, 15A, White
$30.39
FREE Shipping over $99
Estimated delivery in 5-7 days
Estimated delivery in 5-7 days
- This item is currently not available
- Delivery to Change Address
- Delivery Fee Details
This item is excluded from all discounts and promotions.
Minimum order quantity of
1
Maximum order quantity of
100
Must purchase in increments of
1
Return Policy
We believe in offering the very best value, quality, and selection. Plus, we want you to enjoy your purchase! In the event you wish to send a product back to us, you may return most unused items for a refund or exchange, minus shipping, within 90 days from the date of purchase unless noted below under exceptions and exclusions. Refunds are issued to the original form of payment.
Features
These AC Circuit Breakers combine switching and magnetic hydraulic circuit protection into a single device. The "Trip Free" mechanisms cannot be held closed after tripped. Includes stainless steel mounting screw recommended for 6-8 in-lb torque. #10-32 stainless steel terminal screw with external tooth lock washer has a recommended torque of 14-15 in-lb. Operative even at extreme temperatures (-40ºC to +85ºC). 10,000 rated switch cycles at rated amperage and voltage. Meets ABYC standards. UL recognized, TUV certified, CE marked, and CSA certified.
Interrupt Rating:
• 7,500A @ 10-50A 65V DC
• 3,000A @ 10-50A 120V AC
• 3,000A @ 10-50A 120/240V AC
• 3,000A @ 10-50A 250V AC
Interrupt Rating:
• 7,500A @ 10-50A 65V DC
• 3,000A @ 10-50A 120V AC
• 3,000A @ 10-50A 120/240V AC
• 3,000A @ 10-50A 250V AC
- Combines switching and circuit protection
- Magnetic hydraulic breaker type
- "Trip Free": cannot be held closed after trip
- Operates between -40ºC to +85ºC
- Meets ABYC standards
Specs
Unit Weight
0.35 lb
Brand
Blue Sea Systems
MFG Part No.
7235
