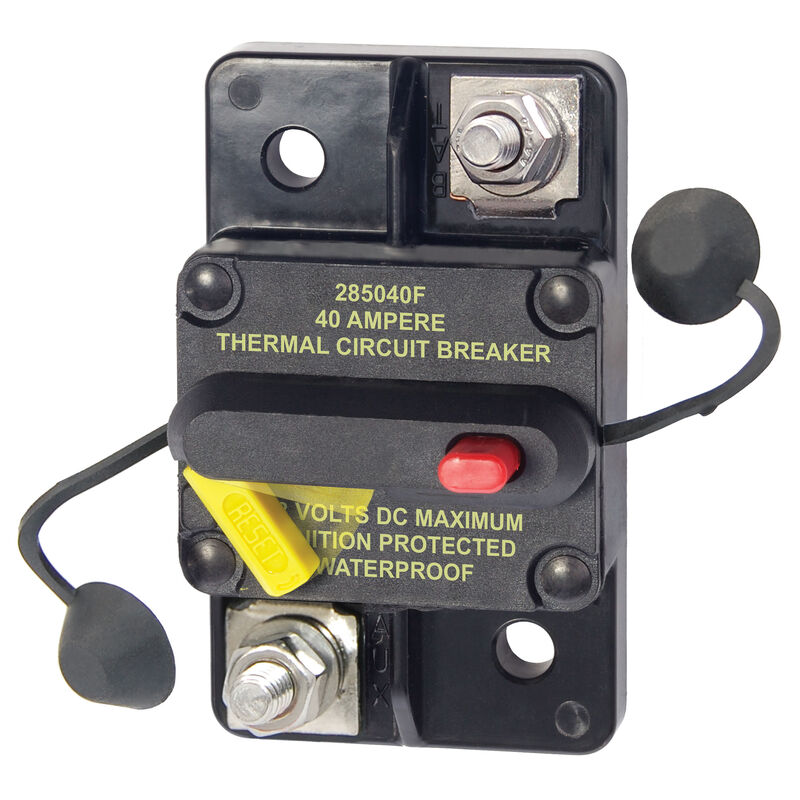

Blue Sea Systems 285 Series Circuit Breaker, Surface Mount, 40 Amp
- This item is currently not available
- Delivery to Change Address
- Delivery Fee Details
This item is excluded from all discounts and promotions.
We believe in offering the very best value, quality, and selection. Plus, we want you to enjoy your purchase! In the event you wish to send a product back to us, you may return most unused items for a refund or exchange, minus shipping, within 90 days from the date of purchase unless noted below under exceptions and exclusions. Refunds are issued to the original form of payment.
Features
NOTE: Do not use as a switch where high inrush currents are expected.
• Amperage: 40A
• Maximum Voltage: 48V DC
• Mounting: Surface Mount
• Circuit Breaker Type: Thermally Responsive Bi-Metal Blade
• Terminal Stud Torque: 50 in.-lb. (5.65 Nm)
• Interrupt Capacity: 3000A @ 48V
• Minimum Operating Temperature: -40°F (-40°C)
• Maximum Operating Temperature: 185°F (85°C)
• Circuit Breaker Class: Type III Switchable/Manual Reset "Trip Free"
• Terminal Stud: Accepts 1/4" Ring Terminal (M6)
Blue Sea Systems No. 7182
- Combines switching and circuit protection
- Drop-in replacement for 185 Series
- Visible reset lever shows open condition
- "Trip Free" cannot be held closed after trip
- Ignition protected
