Blue Sea Systems AC Panel, ELCI Main 30A Double Pole + 5 Positions
$336.49
FREE Shipping
Estimated delivery in 5-7 days
Estimated delivery in 5-7 days
- This item is currently not available
- Delivery to Change Address
- Delivery Fee Details
This item is excluded from all discounts and promotions.
Minimum order quantity of
1
Maximum order quantity of
100
Must purchase in increments of
1
Return Policy
We believe in offering the very best value, quality, and selection. Plus, we want you to enjoy your purchase! In the event you wish to send a product back to us, you may return most unused items for a refund or exchange, minus shipping, within 90 days from the date of purchase unless noted below under exceptions and exclusions. Refunds are issued to the original form of payment.
Features

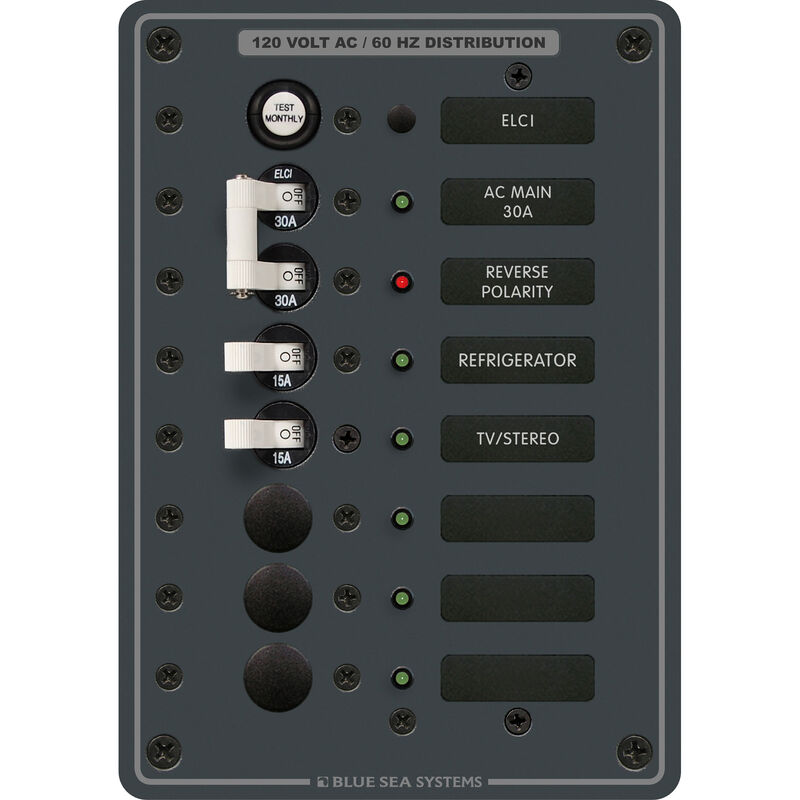

This Blue Sea Systems AC Panel has one 30A AC ELCI Main Residual Current Circuit Breaker with a leakage trip amperate of 30 mA. ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection. Includes a red reverse polarity LED and "ON" indicating LED. All circuit label positions are backlit.
INCLUDES
• 1 A-Series ELCI Main Circuit Breaker, Double Pole 120V AC 30A (Blue Sea No. 3106100)
• 2 A-Series White Toggle Circuit Breakers, Single Pole 15A (Blue Sea No. 7210)
• 6 Green LED, 120V AC (Blue Sea No. 8034)
• 1 Red LED, 120V AC (Blue Sea No. 8066)
SPECIFICATIONS
• Positions: 5
• Nominal Voltage: 120V AC
• Leakage Trip Amperage: 30mA
• Overall: 5.25"H x 7.5"W x 3.5"D
Blue Sea Systems No. 8101
INCLUDES
• 1 A-Series ELCI Main Circuit Breaker, Double Pole 120V AC 30A (Blue Sea No. 3106100)
• 2 A-Series White Toggle Circuit Breakers, Single Pole 15A (Blue Sea No. 7210)
• 6 Green LED, 120V AC (Blue Sea No. 8034)
• 1 Red LED, 120V AC (Blue Sea No. 8066)
SPECIFICATIONS
• Positions: 5
• Nominal Voltage: 120V AC
• Leakage Trip Amperage: 30mA
• Overall: 5.25"H x 7.5"W x 3.5"D
Blue Sea Systems No. 8101
- Overcurrent and leakage protection
- 30A AC ELCI Main Circuit Breaker
- Leakage trip amperate: 30mA
- Red reverse polarity indicating LED
- "ON" indicating LED
Specs
Unit Weight
2.55 lb
Brand
Blue Sea Systems
MFG Part No.
8101
