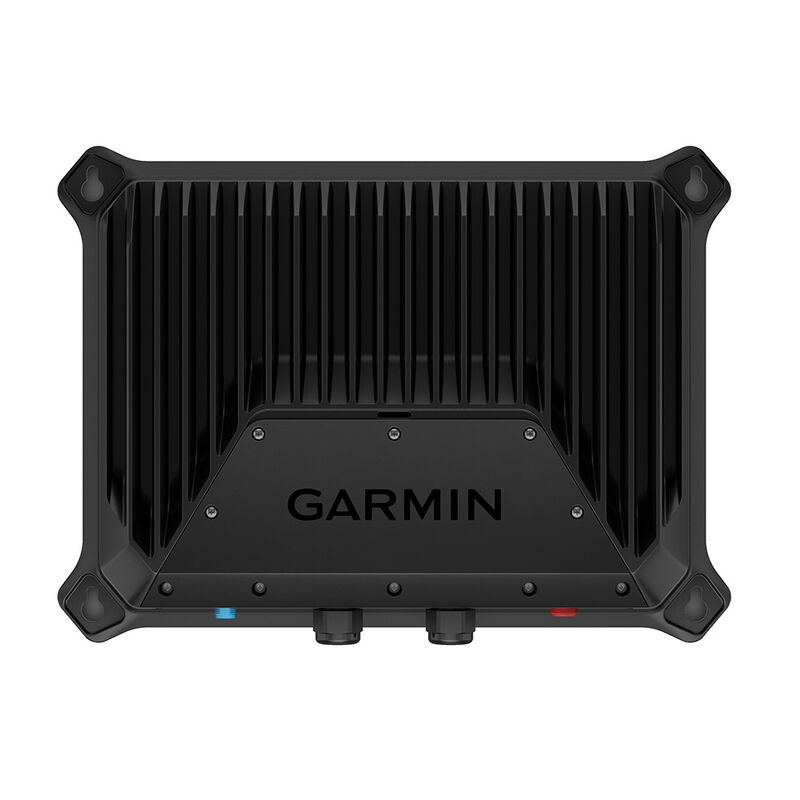

Garmin GSD 28 Advanced Sonar Module
$2,999.99
FREE Shipping
- Ships from vendorThis item is currently not available
- Delivery to Change Address
- Delivery Fee Details
This item is excluded from all discounts and promotions.
Minimum order quantity of
1
Maximum order quantity of
100
Must purchase in increments of
1
Return Policy
We believe in offering the very best value, quality, and selection. Plus, we want you to enjoy your purchase! In the event you wish to send a product back to us, you may return most unused items for a refund or exchange, minus shipping, within 90 days from the date of purchase unless noted below under exceptions and exclusions. Refunds are issued to the original form of payment.
Features
See what’s down there. Catch what’s down there. Take sport fishing to extreme depths with Garmin's high-powered sonar module with the features that are needed to improve the chances of success.
Garmin RapidReturn Sonar
This high-performance technology provides Garmin's fastest deep-water scrolling sonar with 2 to 6 times the ping rate of Garmin's GSD 26 sonar. This allows captains to make fast and informed decisions based on what is below their boats.
xCHIRP Technology
Easily distinguish bait from sport fish with Garmin's clearest traditional sonar fish arches and excellent target separation. Get smooth bottom returns and precise targeting at extreme depths.
Heave Compensation
When the seas get rough, use the MSC 10 external satellite compass (sold separately) to greatly reduce wave and swell from the sonar returns.
Compatibility
Transducer Support
This sonar module is compatible with a wide range of Garmin and AIRMAR transducers (sold separately).
Retrofitting
The GSD 28 module is ideal for retrofitting boats with existing bare wire transducers.
Performance
Sonar Power
GSD 28 can output 300 watts to 3 kW at extreme depths
CHIRP Support
The module supports dual-channel CHIRP (up to 3 kW per channel).
Operation Range
The GSD 28 sonar module can operate in the 25 to 250 kHz frequency range.
Built to Last
GSD 28 is rated for harsh marine environments and water resistance with an IPX7 rating.
In the Box:
• GSD 28
• Power cable
• Garmin BlueNet marine network cable (6 ft) with legacy network adapter
• Field-installable adapter kit for the Garmin BlueNet network
• Mounting hardware
• Documentation
Specifications
General:
• Case Material: Fully gasketed, aluminum housing, steel back panel, plastic access panel
• Physical Dimensions: 10.7" × 14.4" × 4.0" (27.06 cm × 36.66 cm × 10.1 cm)
• Weight: 14.13 lbs (6.4 kg)
• Water Rating: IPX7
• Temperature Range: 5° F to 158° F (from -15° C to 70° C)
Electrical Features:
• Power Input: 10-32 V
• Power Usage: 120 W maximum
• Fuse: 15A
Sonar Features:
• Frequencies Supported: Dual channel CHIRP: 25-250 kHz (transducer dependent)
• Transmit Power: 300W–3kW RMS (transducer dependent)
• Maximum Depth: 10,000 ft. (3,048 m)
• xCHIRP: Yes
• Rapid Return: Yes
Connections:
• Garmin Marine Network Ports: (Garmin BlueNet)
• Sonar Connections: 2 bare wire
WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
Garmin RapidReturn Sonar
This high-performance technology provides Garmin's fastest deep-water scrolling sonar with 2 to 6 times the ping rate of Garmin's GSD 26 sonar. This allows captains to make fast and informed decisions based on what is below their boats.
xCHIRP Technology
Easily distinguish bait from sport fish with Garmin's clearest traditional sonar fish arches and excellent target separation. Get smooth bottom returns and precise targeting at extreme depths.
Heave Compensation
When the seas get rough, use the MSC 10 external satellite compass (sold separately) to greatly reduce wave and swell from the sonar returns.
Compatibility
Transducer Support
This sonar module is compatible with a wide range of Garmin and AIRMAR transducers (sold separately).
Retrofitting
The GSD 28 module is ideal for retrofitting boats with existing bare wire transducers.
Performance
Sonar Power
GSD 28 can output 300 watts to 3 kW at extreme depths
CHIRP Support
The module supports dual-channel CHIRP (up to 3 kW per channel).
Operation Range
The GSD 28 sonar module can operate in the 25 to 250 kHz frequency range.
Built to Last
GSD 28 is rated for harsh marine environments and water resistance with an IPX7 rating.
In the Box:
• GSD 28
• Power cable
• Garmin BlueNet marine network cable (6 ft) with legacy network adapter
• Field-installable adapter kit for the Garmin BlueNet network
• Mounting hardware
• Documentation
Specifications
General:
• Case Material: Fully gasketed, aluminum housing, steel back panel, plastic access panel
• Physical Dimensions: 10.7" × 14.4" × 4.0" (27.06 cm × 36.66 cm × 10.1 cm)
• Weight: 14.13 lbs (6.4 kg)
• Water Rating: IPX7
• Temperature Range: 5° F to 158° F (from -15° C to 70° C)
Electrical Features:
• Power Input: 10-32 V
• Power Usage: 120 W maximum
• Fuse: 15A
Sonar Features:
• Frequencies Supported: Dual channel CHIRP: 25-250 kHz (transducer dependent)
• Transmit Power: 300W–3kW RMS (transducer dependent)
• Maximum Depth: 10,000 ft. (3,048 m)
• xCHIRP: Yes
• Rapid Return: Yes
Connections:
• Garmin Marine Network Ports: (Garmin BlueNet)
• Sonar Connections: 2 bare wire
WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
- Engineered for offshore sport fishing
- See sonar faster with Garmin RapidReturn technology
- Crisp and clear fish targets with Xchirp technology
- Excellent target separation with xCHIRP technology
- Greatly reduce wave and swell from bottom returns with heave compensation
Specs
Unit Weight
19.60 lb
Brand
Garmin
MFG Part No.
101725
