HWH AP60587 Sprinter Leveling System
$5,579.99
FREE Shipping
- Ships from vendor
- Delivery to Change Address
- Delivery Fee Details
This item is excluded from all discounts and promotions.
Minimum order quantity of
1
Maximum order quantity of
100
Must purchase in increments of
1
Shipping Restrictions
Shipping for this item is not available to Canada, Alaska or Hawaii
Return Policy
We believe in offering the very best value, quality, and selection. Plus, we want you to enjoy your purchase! In the event you wish to send a product back to us, you may return most unused items for a refund or exchange, minus shipping, within 90 days from the date of purchase unless noted below under exceptions and exclusions. Refunds are issued to the original form of payment.
Features

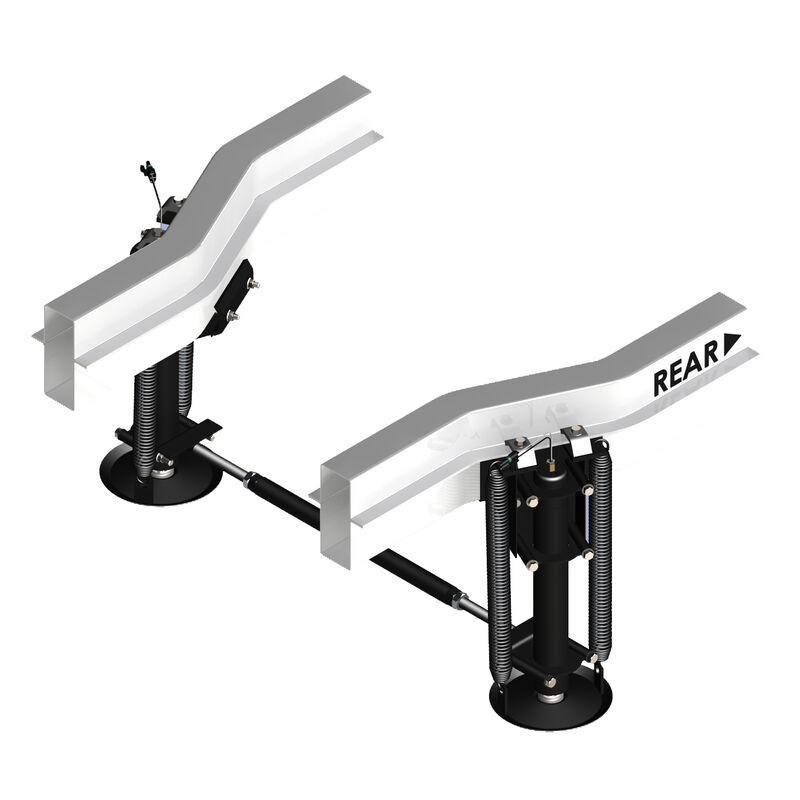

The AP60587 Sprinter Leveling System for the 2020 Sprinter 3500 Series VS30 Chassis with the V6 Diesel Engine and Coach with build date after Summer 2019. Winnebago View Profile, Itasca Navion IQ View, Navion, Fleetwood Pulse, Icon, and others.
Note: View or Navion 24M may need modifications on the rear battery box bracket or dump valves. Winnebago with LP Generator may need HWH part P54186.
Jack Kit
Two straight-acting (power-extend/spring retract) jacks with a lifting capacity of 4,000 lbs. per jack on the front.
Rear Jack Mounted Inboard OR Rear Jack Mounted Outboard
Two straight-acting (power-extend/spring retract) jacks with a lifting capacity of 6,000 lbs. per jack on the rear.
Power Unit Kit
725 Series. 12V DC motor and pump. 125-amp. 3,000 psi relief with prewired control module and jack valving.
Control Kit
725 Series. Single-Step BI-AXIS Touch Panel-Controlled Hydraulic Leveling System with Leveleze Light Package.
AP0252 Hose Kit
P35390 Bezel Plate
Note: View or Navion 24M may need modifications on the rear battery box bracket or dump valves. Winnebago with LP Generator may need HWH part P54186.
Jack Kit
Two straight-acting (power-extend/spring retract) jacks with a lifting capacity of 4,000 lbs. per jack on the front.
Rear Jack Mounted Inboard OR Rear Jack Mounted Outboard
Two straight-acting (power-extend/spring retract) jacks with a lifting capacity of 6,000 lbs. per jack on the rear.
Power Unit Kit
725 Series. 12V DC motor and pump. 125-amp. 3,000 psi relief with prewired control module and jack valving.
Control Kit
725 Series. Single-Step BI-AXIS Touch Panel-Controlled Hydraulic Leveling System with Leveleze Light Package.
AP0252 Hose Kit
P35390 Bezel Plate
- Complete after-market leveling system
- Jack kit with capacity of 4,000 lbs. per jack on front
- Rear jack kit with capacity of 6,000 lbs. per jack on rear
- Power unit kit and control kit
- Hose kit and bezel plate
Specs
Weight Capacity
6000.00 lbs
Unit Weight
185.00 lb
Brand
HWH
MFG Part No.
AP60587
